应用TSM盆地模拟技术恢复准噶尔盆地东北缘石炭系烃源岩热演化史

周雨双; 贾存善; 张奎华; 赵永强; 余琪祥; 江兴歌; 曹倩

doi:10.11781/sysydz202102297

应用TSM盆地模拟技术恢复准噶尔盆地东北缘石炭系烃源岩热演化史

doi: 10.11781/sysydz202102297

1.
中国石化石油勘探开发研究院无锡石油地质研究所, 江苏无锡 214126
2.
中国石化胜利油田分公司勘探开发研究院, 山东东营 257061

基金项目:

中国石化重大先导项目 G5800-12-ZS-YTB67

详细信息

作者简介:
周雨双(1987—), 男, 工程师, 从事地震解释和断裂构造解析研究。E-mail: zhouys.syky@sinopec.com

中图分类号: TE122.11
计量
- 文章访问数: 671
- HTML全文浏览量: 207
- PDF下载量: 104
- 被引次数: 0
出版历程
- 收稿日期: 2020-06-02
- 修回日期: 2021-01-26
- 刊出日期: 2021-03-28

Thermal evolution history reconstruction of Carboniferous source rocks on the northeastern margin of Junggar Basin using TSM basin simulation technology

1.
Wuxi Research Institute of Petroleum Geology, SINOPEC, Wuxi, Jiangsu 214126, China
2.
Research Institute of Exploration and Development, SINOPEC Shengli Oilfield Company, Dongying, Shandong 257061, China

摘要

摘要: 准噶尔盆地东北缘石炭系发育多套烃源岩，恢复烃源岩热演化史对深化认识该区油气成藏过程具有重要作用。在盆地原型演化与烃源岩发育特征研究基础上，应用TSM盆地模拟资源评价系统建立了一维和三维盆地模拟模型，恢复了不同构造单元埋藏史、热史和烃源岩生烃演化史。准噶尔盆地东北缘各凹陷石炭系烃源岩生烃演化过程存在明显的差异，乌伦古坳陷石炭系烃源岩在石炭纪末进入低成熟演化阶段，二叠纪隆升造成烃源岩演化停滞，三叠纪末再次埋藏演化达二次生烃门限，现今处于过成熟生干气阶段（R_o>2.0%）；三南凹陷石炭系烃源岩在二叠纪进入低成熟演化阶段，现今处于高成熟演化生气阶段（R_o为1.5%~1.9%）；滴水泉凹陷石炭系烃源岩在三叠纪进入低成熟演化阶段，现今仍处于成熟演化生油阶段（R_o为0.8%~1.3%）。通过模拟计算获得了乌伦古坳陷石炭系姜巴斯套组烃源岩的累计生烃量为205.2×10⁸ t，其中石炭纪末累计生烃量为103×10⁸ t，是主要的生油高峰期；白垩纪末累计生烃量为184.4×10⁸ t，是主要的生气高峰期。
- 烃源岩 /
- 热演化 /
- TSM盆地模拟 /
- 石炭系 /
- 乌伦古坳陷 /
- 准噶尔盆地
Abstract: Multiple sets of source rocks developed in the Carboniferous on the northeastern margin of Junggar Basin. Modelling the thermal evolution history of source rocks is of great importance to deepen the understanding of hydrocarbon accumulation. Based on the study of basin evolution and source rock development characteristics, this paper applies a TSM Basin Simulation and Resource Evaluation System to establish one-dimensional and three-dimensional basin simulation models so as to reconstruct the burial, thermal evolution and hydrocarbon generation histories of different structural units. There are obvious differences in the hydrocarbon generation and evolution process of Carboniferous source rocks in different sags on the northeastern margin of the Junggar Basin. The Carboniferous source rocks in the Wulungu Depression entered the low-maturity evolution stage at the end of the Carboniferous, stagnated due to uplifts in the Permian, reached the threshold of secondary hydrocarbon generation at the end of Triassic when burial resumed, and are now in the over-mature stage, mainly generating dry gas (R_o>2.0%). The Carboniferous source rocks in the Sannan Sag entered the low-maturity stage in the Permian and are now in the high-maturity gas-producing stage (R_o=1.5%-1.9%). The Carboniferous source rocks in the Dishuiquan Sag entered the low-maturity stage in the Triassic and are now in the mature oil-producing stage (R_o=0.8%-1.3%). Simulation calculations show that the cumulative hydrocarbon generation of the source rocks in the Carboniferous Jiangbasitao Formation in the Wulungu Depression amounts to 20.5×10⁹ t, in which the cumulative hydrocarbon generation until the end of Carboniferous is 10.3×10⁹ t, which is the main oil generation stage. The cumulative gas generation at the end of Cretaceous is 18.4×10⁹ t, which is the main gas generation period.
- source rock /
- thermal evolution /
- TSM basin modelling /
- Carboniferous /
- Wulungu Depression /
- Junggar Basin

HTML全文

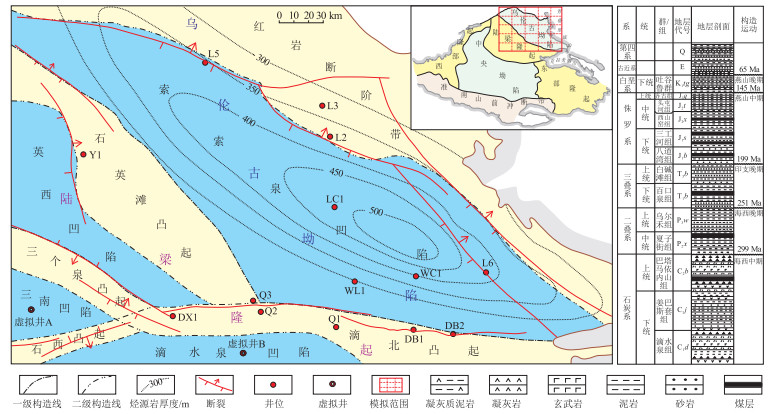

图 1 准噶尔盆地东北缘构造单元划分及地层柱状图

据参考文献[13]修改。

Figure 1. Structural unit division and stratigraphic histogram of the northeastern margin of Junggar Basin

下载: 全尺寸图片幻灯片

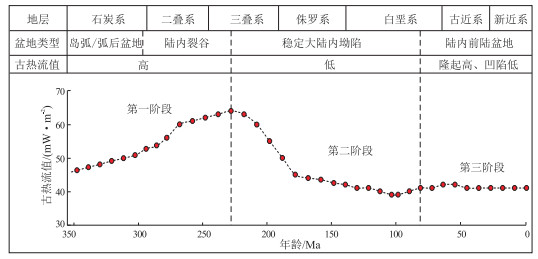

图 2 准噶尔盆地东北缘地质历史时期古热流值

据参考文献[11, 27]。

Figure 2. Paleogeothermal flow values during geological histories on the northeastern margin of Junggar Basin

下载: 全尺寸图片幻灯片

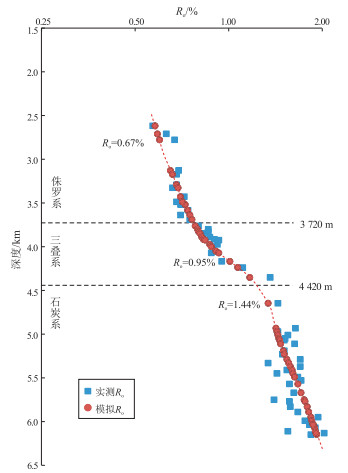

图 3 准噶尔盆地东北缘实测和模拟成熟度R_o随深度的变化关系

Figure 3. Relationship between measured and simulated maturity(R_o) with depth, northeastern margin of Junggar Basin

下载: 全尺寸图片幻灯片

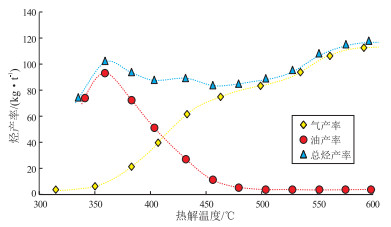

图 4 准噶尔盆地东北缘WC1井下石炭统烃源岩烃产率与温度的关系

Figure 4. Relationship between hydrocarbon production rate and temperature of the Lower Carboniferous source rocks from the well WC1 on the northeastern margin of Junggar Basin

下载: 全尺寸图片幻灯片

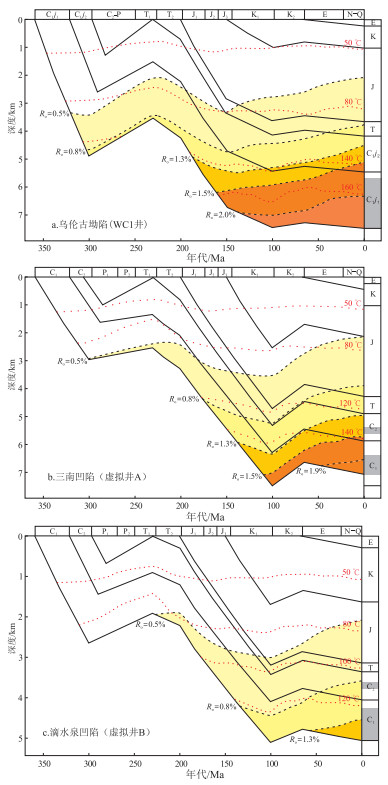

图 5 准噶尔盆地东北缘各凹陷单井埋藏史、热史演化

Figure 5. Burial and thermal evolution histories of single well in different sags, northeastern margin of Junggar Basin

下载: 全尺寸图片幻灯片

图 6 准噶尔盆地东北缘石炭系烃源岩成熟度演化史模拟

Figure 6. Maturity evolution sequence of Carboniferous source rocks on northeastern margin of Junggar Basin

下载: 全尺寸图片幻灯片

图 7 准噶尔盆地乌伦古坳陷石炭系姜巴斯套组累计生烃强度模拟分布

Figure 7. Simulated cumulative distribution of hydrocarbon generation intensity of Carboniferous Jiangbasitao Formation, Wulungu Depression, Junggar Basin

下载: 全尺寸图片幻灯片

表 1 准噶尔盆地东北缘石炭系烃源岩有机质丰度和成熟度参数

Table 1. Organic matter abundance and maturity parameters of the Carboniferous source rock samples from wells on the northeastern margin of Junggar Basin

构造位置	钻井/露头	层位	岩性	w(TOC)/%	生烃潜量/(mg·g^-1)	氯仿沥青“A”/10^-6	R_o/%
乌伦古坳陷	WC1	C₁j	灰黑色凝灰质泥岩	0.43~1.88/0.87(71)	0.04~3.59/0.57(71)	22.26~1 468/607.26(18)	1.34~2.91/1.75(32)
	LC1	C₁j	灰色凝灰岩	0.26(6)
	L2	C₁j	灰色凝灰岩	0.09(1)
	L6	C₁j	灰色凝灰质泥岩	0.27~0.77/0.54(3)	0.54~0.73/0.64(3)
滴北凸起	Q1	C₁d	灰黑色泥岩	2.64~5.60/3.70(7)
	Q2	C₂b	灰黑色泥岩	0.96~1.76/1.33(4)			0.58~0.62/0.60(4)
	Q3	C₂b	灰黑色泥岩	1.38(1)
	DB1	C₁d	灰色凝灰岩	0.52(16)			0.66(4)
注：表中分式含义为：最小值~最大值/平均值(样品数)。

下载: 导出CSV
