Helium distribution of Dongsheng gas field in Ordos Basin and discovery of a super large helium-rich gas field
-
摘要: 近年来，随着鄂尔多斯盆地北缘杭锦旗地区东胜气田勘探开发进程的逐步推进，发现在该地区天然气中普遍伴生具有工业价值的氦气。通过对东胜气田166口井天然气样品分析发现，氦气含量为0.045%~0.487%，达到含氦-富氦气田标准。气田中部独贵加汗区带及北部什股壕区带2个基底断裂发育区氦气含量较高，平均含量大于0.1%，具有较大的氦气勘探开发潜力。纵向上从下（盒1段）到上（盒3段）氦气含量依次降低，盒1段和盒2段氦气含量较高，均大于0.1%，为主要的氦气勘探开发层系。根据氦气同位素组成发现，东胜气田氦气为典型的壳源成因，主要来源于基底的太古宇—元古宇变质岩—花岗岩系，氦气分布受基底岩相和深大断裂双重控制，高值区主要沿泊尔江海子等通基底断裂两侧分布，在二级断裂的通氦源断裂与四级断裂的输导体系交汇处和太古宇—元古宇变质岩—花岗岩系基底发育区富集。通过对东胜气田重点天然气井中短期内氦气含量随气井生产动态的变化特征研究，发现天然气在较长的开发时期内氦气含量保持稳定；按照体积法计算，其氦气探明储量为2.444×108 m3，三级储量为8.304×108 m3，是目前我国第一大特大型含氦—富氦气田，资源潜力巨大。建议选取东胜气田作为氦气资源开发利用的先导试验区，加快论证建设氦气战略储备基地的可行性；同时加强主要含油气盆地天然气中氦气成藏规律、资源潜力评价以及氦气等伴生资源的综合利用研究，指导氦气资源勘探开发和综合利用。Abstract: With the developments of exploration and production of natural gas in the Dongsheng gas field of Hangjinqi area, northern part of Ordos Basin, industrial valued helium has been discovered in this area. Natural gases from 166 wells in the Dongsheng gas field were analyzed in this study and results show that the helium contents of these gases range from 0.045% to 0.487%, with an average value of 0.118%, indicating industrial value for the helium resource. Two basement-faults developed zones of Duguijiahan and Shiguhao in the center of the gas field have relative higher content of helium, with an average value higher than 0.1%, indicating a great exploration potential. The average helium contents decrease from the lower stratum (the first member of Xiashihezi Formation, P1x1) to the upper stratum (the third member of Xiashihezi Formation, P1x3), indicating that the P1x1 and P1x2 are potential targets for helium exploration and development. According to helium isotopic compositions, helium in the Dongsheng gas field has of a typical crust source, mainly from Archean-Proterozoic metamorphic rock-granite series in the basement. It is clear that helium distribution in the Dongsheng gas field was controlled by both basement lithofacies and deep fractures. Helium is enriched mainly along deep basement fractures such as Borjianghaizi and Wulanjilinmiao, and at the intersection of second-level fractures communicating helium source and fourth-level faults being migration pathways, and in the areas of Archean-Proterozoic metamorphic rock-granite series basement distribution. The variation of helium content with gas well production performance in short and medium term of key natural gas wells in the Dongsheng gas field showed that the helium contents in natural gases are stable in a relatively long term. The proved helium reserves are 244.4×106 m3 and the 3P reserves are approaching 830.4×106 m3 by volume method. Thus, the Dongsheng gas field is considered as the first supergiant helium-rich gas field in China. It is suggested that the Dongsheng gas field in the Ordos Basin should be regarded as a pilot test area for the development and utilization of helium resources, and the feasibility of building helium strategic reserve base should be accelerated. The research on helium accumulation mechanism, resource potential evaluation and comprehensive utilization of helium and other associated resources in natural gas should be strengthened in major oil and gas bearing basins, in order to guide the exploration, development and comprehensive utilization of helium resources.
-

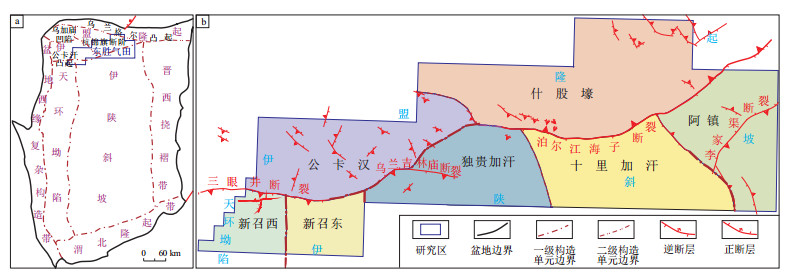

图 1 鄂尔多斯盆地东胜气田构造位置(a)及区带划分(b)
Figure 1. Location (a) and zone division (b) of Dongsheng gas field, Ordos Basin

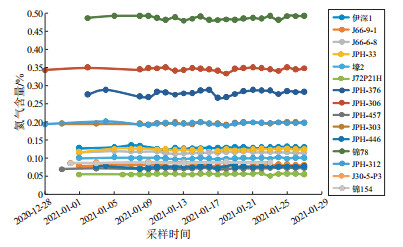

图 2 鄂尔多斯盆地东胜气田15口重点气井在一个月内的天然气中氦气含量变化特征
Figure 2. Variation characteristics of helium contents in natural gases of 15 wells within one month, Dongsheng gas field, Ordos Basin

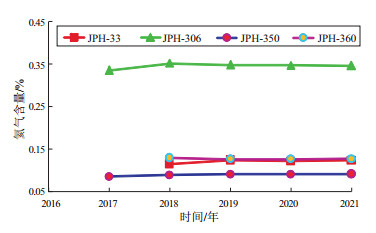

图 3 鄂尔多斯盆地东胜气田4口重点井近5年内氦气含量变化
Figure 3. Variation curves of helium contents in natural gases of 4 key wells in recent 5 years, Dongsheng gas field, Ordos Basin

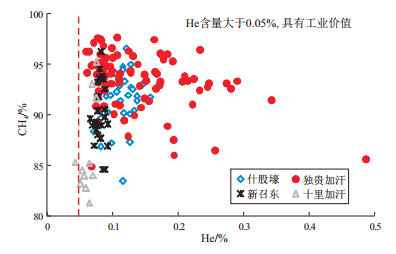

图 4 鄂尔多斯盆地东胜气田不同区带天然气中氦气含量分布特征
Figure 4. Distribution characteristics of helium contents in different zones in Dongsheng gas field, Ordos Basin

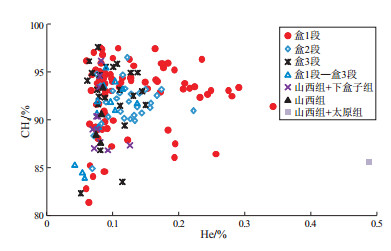

图 5 鄂尔多斯盆地东胜气田不同产层天然气中氦气含量分布特征
Figure 5. Distribution characteristics of helium contents in different layers in Dongsheng gas field, Ordos Basin

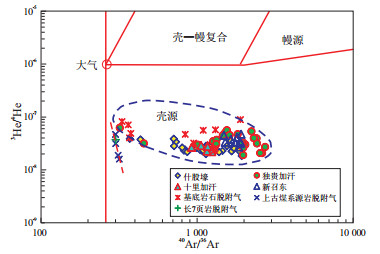

图 6 鄂尔多斯盆地东胜气田氦气成因及来源判识
Figure 6. Origin and source identification of helium gas in Dongsheng gas field, Ordos Basin
图 7 鄂尔多斯盆地东胜气田氦气含量平面分布和断裂分布对比
Figure 7. Distribution of fractures and helium contents in Dongsheng gas field, Ordos Basin

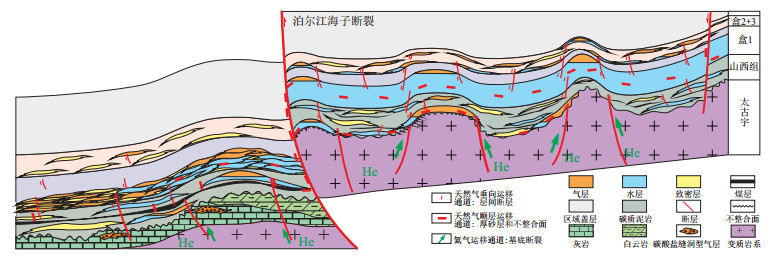

图 8 鄂尔多斯盆地东胜气田氦气成藏模式
Figure 8. Helium accumulation model of Dongsheng gas field, Ordos Basin
表 1 鄂尔多斯盆地东胜气田气样分布及特征
Table 1. Distribution of gas samples collected from Dongsheng gas field, Ordos Basin
编号 区带 主要产层 气样数量/个 1 什股壕 盒2段、盒3段 34 2 独贵加汗 盒1段、盒3段 93 3 新召东 盒1段、山2段 28 4 十里加汗 盒1段、盒3段 11
下载: 导出CSV
表 2 鄂尔多斯盆地东胜气田不同区带氦气含量统计
Table 2. Statistics of helium contents in different zones of Dongsheng gas field, Ordos Basin
区带 样品井数/口 He含量大于0.1%井数/口 He含量大于0.1%井数占比/% He平均含量/% 什股壕 34 23 67.7 0.113 独贵加汗 93 55 59.1 0.138 新召东 28 0 0 0.081 十里加汗 11 0 0 0.063 合计 166 78 47.0 0.118
下载: 导出CSV
表 3 鄂尔多斯盆地东胜气田不同层位氦气含量统计
Table 3. Statistics of helium contents in different layers of Dongsheng gas field, Ordos Basin
层位 井数/ 口 He含量大于0.1%井数/口 He含量大于0.1% 井占比/% He含量均值/% 盒3段 23 11 47.8 0.098 盒2段 29 22 75.9 0.123 盒1段 85 39 45.9 0.129 盒1+盒2+ 盒3段 13 4 30.8 0.085 山西组+ 下石盒子组 11 1 9.1 0.084 山西组 4 0 0 0.082 山西组+ 太原组 1 1 100.0 0.487 合计 166 78 47.0 0.118
下载: 导出CSV
表 4 鄂尔多斯盆地东胜气田各区带氦气地质资源量
Table 4. Geological resources of helium in various zones of Dongsheng gas field, Ordos Basin
108m3 区带 层位 氦气平均含量/% 探明储量 控制储量 预测储量 氦气地质储量 天然气 氦气 天然气 氦气 天然气 氦气 什股壕 盒2段 0.116 54.33 0.063 418.22 0.485 1.276 盒3段 0.121 108.54 0.131 盒2+盒3段 0.110 542.32 0.597 独贵加汗 盒1段 0.148 1 076.45 1.593 2.393 太原组 0.138 241.33 0.333 盒2+盒3段 0.103 452.64 0.467 新召东 盒1段 0.082 123.90 0.102 630.29 0.517 1.108 山2段 0.079 110.88 0.088 135.10 0.107 371.67 0.294 十里加汗 山1段 0.084 494.72 0.416 3.231 山2段 0.079 1 271.81 1.005 盒1段 0.069 1 656.60 1.143 798.16 0.551 盒2+盒3段 0.052 222.8 0.116 阿镇 盒1段 0.069 429.07 0.296 0.296 合计 1 926.74 2.444 5 149.06 4.270 2 063.03 1.590 8.304
下载: 导出CSV
-
[1] United States Geological Survey. Mineral commodity summaries 2017[M]. Washington DC: USGS, 2017: 78-80. [2] 刘佳宜, 黄晓伟. 深部油气资源将成勘探新领域[N]. 中国科学报, 2020-09-09(3).LIU Jiayi, HUANG Xiaowei. Deep oil and gas resources will become a new field of exploration[N]. Chinese Science Daily, 2020-09-09(3). [3] 王熙庭, 任庆生. 氦资源、应用、市场和提取技术[J]. 天然气化工, 2012, 37(1): 73-78. https://www.cnki.com.cn/Article/CJFDTOTAL-TRQH201201024.htmWANG Xiting, REN Qingsheng. Resources, application, market and extraction technologies of helium[J]. Natural Gas Chemical Industry, 2012, 37(1): 73-78. https://www.cnki.com.cn/Article/CJFDTOTAL-TRQH201201024.htm [4] 徐永昌, 沈平, 陶明信, 等. 中国含油气盆地天然气中氦同位素分布[J]. 科学通报, 1994, 39(16): 1506-1508. https://www.cnki.com.cn/Article/CJFDTOTAL-KXTB199416018.htmXU Yongchang, SHEN Ping, TAO Mingxin, et al. Helium isotope distribution of natural gas in petroliferous basins of China[J]. Chinese Science Bulletin, 1994, 39(16): 1505-1508. https://www.cnki.com.cn/Article/CJFDTOTAL-KXTB199416018.htm [5] 陶明信, 沈平, 徐永昌, 等. 苏北盆地幔源氦气藏的特征与形成条件[J]. 天然气地球科学, 1997, 8(3): 1-8. https://www.cnki.com.cn/Article/CJFDTOTAL-TDKX199703000.htmTAO Mingxin, SHEN Ping, XU Yongchang, et al. Characteristics and formation conditions of mantle-derived helium reservoirs in Northern Jiangsu Basin[J]. Natural Gas Geoscience, 1997, 8(3): 1-8. https://www.cnki.com.cn/Article/CJFDTOTAL-TDKX199703000.htm [6] 王杰, 刘文汇, 秦建中, 等. 苏北盆地黄桥CO2气田成因特征及成藏机制[J]. 天然气地球科学, 2008, 19(6): 826-834. https://www.cnki.com.cn/Article/CJFDTOTAL-TDKX200806016.htmWANG Jie, LIU Wenhui, QIN Jianzhong, et al. Reservoir forming mechanism and origin characteristics in Huangqiao carbon dioxide gas field, North Jiangsu Basin[J]. Natural Gas Geoscience, 2008, 19(6): 826-834. https://www.cnki.com.cn/Article/CJFDTOTAL-TDKX200806016.htm [7] 余琪祥, 史政, 王登高, 等. 塔里木盆地西北部氦气富集特征与成藏条件分析[J]. 西北地质, 2013, 46(4): 215-222. https://www.cnki.com.cn/Article/CJFDTOTAL-XBDI201304026.htmYU Qixiang, SHI Zheng, WANG Denggao, et al. Analysis on helium enrichment characteristics and reservoir forming conditions in northwest Tarim Basin[J]. Northwestern Geology, 2013, 46(4): 215-222. https://www.cnki.com.cn/Article/CJFDTOTAL-XBDI201304026.htm [8] 张晓宝, 周飞, 曹占元, 等. 柴达木盆地东坪氦工业气田发现及氦气来源和勘探前景[J]. 天然气地球科学, 2020, 31(11): 1585-1592. https://www.cnki.com.cn/Article/CJFDTOTAL-TDKX202011007.htmZHANG Xiaobao, ZHOU Fei, CAO Zhanyuan, et al. Finding of the Dongping economic helium gas field in the Qaidam Basin, and helium source and exploration prospect[J]. Natural Gas Geoscience, 2020, 31(11): 1585-1592. https://www.cnki.com.cn/Article/CJFDTOTAL-TDKX202011007.htm [9] 张文, 李玉宏, 王利, 等. 渭河盆地氦气成藏条件分析及资源量预测[J]. 天然气地球科学, 2018, 29(2): 236-244. https://www.cnki.com.cn/Article/CJFDTOTAL-TDKX201802009.htmZHANG Wen, LI Yuhong, WANG Li, et al. The analysis of helium accumulation conditions and prediction of helium resource in Weihe Basin[J]. Natural Gas Geoscience, 2018, 29(2): 236-244. https://www.cnki.com.cn/Article/CJFDTOTAL-TDKX201802009.htm [10] 李玉宏, 王行运, 韩伟. 陕西渭河盆地氦气资源赋存状态及其意义[J]. 地质通报, 2016, 35(2/3): 372-378. https://www.cnki.com.cn/Article/CJFDTOTAL-ZQYD2016Z1020.htmLI Yuhong, WANG Xingyun, HAN Wei. Mode of occurrence of helium in Weihe Basin, Shaanxi Province and its significance[J]. Geological Bulletin of China, 2016, 35(2/3): 372-378. https://www.cnki.com.cn/Article/CJFDTOTAL-ZQYD2016Z1020.htm [11] 杨振宁, 李永红, 刘文进, 等. 柴达木盆地北缘全吉山地区氦气形成地质条件及资源远景分析[J]. 中国煤炭地质, 2018, 30(6): 64-70. https://www.cnki.com.cn/Article/CJFDTOTAL-ZGMT201806013.htmYANG Zhenning, LI Yonghong, LIU Wenjin, et al. Geological conditions of helium formation and resource prospect analysis in Quanjishan area, northern Qaidam Basin[J]. Coal Geology of China, 2018, 30(6): 64-70. https://www.cnki.com.cn/Article/CJFDTOTAL-ZGMT201806013.htm [12] 柳永刚, 张翔, 刘子锐, 等. 甘肃省首个高品位氦气盆地的发现及勘探前景[J]. 甘肃地质, 2020, 29(3/4): 29-36. https://www.cnki.com.cn/Article/CJFDTOTAL-GSDZ2020Z2005.htmLIU Yonggang, ZHANG Xiang, LIU Zirui, et al. The first discovery and exploration prospect of high grade helium basin in Gansu Province[J]. Gansu Geology, 2020, 29(3/4): 29-36. https://www.cnki.com.cn/Article/CJFDTOTAL-GSDZ2020Z2005.htm [13] 张健, 杨威, 易海永, 等. 四川盆地前震旦系勘探高含氦天然气藏的可行性[J]. 天然气工业, 2015, 35(1): 45-52. https://www.cnki.com.cn/Article/CJFDTOTAL-TRQG201501006.htmZHANG Jian, YANG Wei, YI Haiyong, et al. Feasibility of high-helium natural gas exploration in the Presinian strata of the Sichuan Basin[J]. Natural Gas Industry, 2015, 35(1): 45-52. https://www.cnki.com.cn/Article/CJFDTOTAL-TRQG201501006.htm [14] 杨方之, 王金渝, 潘庆斌. 苏北黄桥地区上第三系富氦天然气成因探讨[J]. 石油与天然气地质, 1991, 12(3): 340-345. https://www.cnki.com.cn/Article/CJFDTOTAL-SYYT199103012.htmYANG Fangzhi, WANG Jinyu, PAN Qingbin. Discussion on origin of Upper Neogene helium-rich gases in Huangqiao, north Jiangsu[J]. Oil & Gas Geology, 1991, 12(3): 340-345. https://www.cnki.com.cn/Article/CJFDTOTAL-SYYT199103012.htm [15] 王佩业, 宋涛, 真允庆, 等. 四川威远气田: 幔壳混源成因的典型范例[J]. 地质找矿论丛, 2011, 26(1): 63-73. https://www.cnki.com.cn/Article/CJFDTOTAL-DZZK201101014.htmWANG Peiye, SONG Tao, ZHEN Yunqing, et al. Sichuan Weiyuan gas field: a typical example for mantle-crust source[J]. Contributions to Geology and Mineral Resources Research, 2011, 26(1): 63-73. https://www.cnki.com.cn/Article/CJFDTOTAL-DZZK201101014.htm [16] WEI Guoqi, WANG Dongliang, WANG Xiaobo, et al. Characte-ristics of noble gases in the large Gaoshiti-Moxi gas field in Sichuan Basin, SW China[J]. Petroleum Exploration and Deve-lopment, 2014, 41(5): 585-590. [17] 李功强, 贾会冲, 潘和平, 等. 内蒙古杭锦旗探区石炭—二叠系天然气成藏模式[J]. 现代地质, 2017, 31(3): 587-594. https://www.cnki.com.cn/Article/CJFDTOTAL-XDDZ201703015.htmLI Gongqiang, JIA Huichong, PAN Heping, et al. The Permo-Carboniferous gas reservoir forming model of Hangjinqi exploration area in northern Ordos Basin, Inner Mongolia[J]. Geoscience, 2017, 31(3): 587-594. https://www.cnki.com.cn/Article/CJFDTOTAL-XDDZ201703015.htm [18] 倪春华, 朱建辉, 刘光祥, 等. 鄂尔多斯盆地杭锦旗地区上古生界煤系烃源岩生烃潜力再评价[J]. 石油实验地质, 2021, 43(5): 826-834. doi: 10.11781/sysydz202105826NI Chunhua, ZHU Jianhui, LIU Guangxiang, et al. Re-evaluation of hydrocarbon generation potential of the Upper Paleozoic coal-measure source rocks in the Hangjinqi area of Ordos Basin[J]. Petroleum Geology & Experiment, 2021, 43(5): 826-834. doi: 10.11781/sysydz202105826 [19] 曹桐生, 罗龙, 谭先锋, 等. 致密砂岩储层成因及其孔隙演化过程: 以杭锦旗十里加汗地区下石盒子组为例[J]. 断块油气田, 2021, 28(5): 598-603. https://www.cnki.com.cn/Article/CJFDTOTAL-DKYT202105005.htmCAO Tongsheng, LOU Long, TAN Xianfeng, et al. Genesis and pore evolution of tight sandstone reservoir: taking Lower Shihezi Formation in the Shilijiahan block of Hangjinqi area as an example[J]. Fault-Block Oil and Gas Field, 2021, 28(5): 598-603. https://www.cnki.com.cn/Article/CJFDTOTAL-DKYT202105005.htm [20] 罗开平, 杨帆, 陆永德, 等. 鄂尔多斯盆地杭锦旗地区关键构造期与二叠系致密气成藏响应[J]. 石油实验地质, 2021, 43(4): 557-568. doi: 10.11781/sysydz202104557LUO Kaiping, YANG Fan, LU Yongde, et al. Key structural periods and Permian tight gas accumulation response in Hangjinqi area, Ordos Basin[J]. Petroleum Geology & Experiment, 2021, 43(4): 557-568. doi: 10.11781/sysydz202104557 [21] 张威, 丁晓琪, 李春堂, 等. 鄂尔多斯盆地北部杭锦旗马家沟组四段碳酸盐岩储层分布规律[J]. 石油与天然气地质, 2021, 42(3): 615-626. https://www.cnki.com.cn/Article/CJFDTOTAL-SYYT202103009.htmZHANG Wei, DING Xiaoqi, LI Chuntang, et al. Distribution of paleo-karst reservoirs in Ma 4 Member, Hangjinqi area, northern Ordos Basin[J]. Oil & Gas Geology, 2021, 42(3): 615-626. https://www.cnki.com.cn/Article/CJFDTOTAL-SYYT202103009.htm [22] 张倚安, 田景春, 张翔, 等. 构造—沉积格局控制下的砂体展布规律: 以杭锦旗地区二叠系为例[J]. 断块油气田, 2021, 28(2): 187-193. https://www.cnki.com.cn/Article/CJFDTOTAL-DKYT202102009.htmZHANG Yian, TIAN Jingchun, ZHANG Xiang, et al. The sand body distribution law controlled by tectonic-sedimentary pattern: a case study of Permian in Hangjinqi area[J]. Fault-Block Oil and Gas Field, 2021, 28(2): 187-193. https://www.cnki.com.cn/Article/CJFDTOTAL-DKYT202102009.htm [23] 谭东萍, 罗龙, 谭先锋, 等. 东胜气田二叠系下石盒子组致密砂岩成岩作用及成储效应[J]. 特种油气藏, 2021, 28 (1): 68-76. https://www.cnki.com.cn/Article/CJFDTOTAL-TZCZ202105010.htmTAN Dongping, LUO Long, TAN Xianfeng, et al. Diagenesis and reservoir formation effect of tightm sandstone in lower permian Shihezi Formation, Dongsheng gasfield[J]. Special Oil & Gas Reserviors, 2021, 28 (1): 68-76. https://www.cnki.com.cn/Article/CJFDTOTAL-TZCZ202105010.htm [24] 张威, 李良, 贾会冲. 鄂尔多斯盆地杭锦旗地区十里加汗区带下石盒子组1段岩性圈闭成藏动力及气水分布特征[J]. 石油与天然气地质, 2016, 37(2): 189-196. https://www.cnki.com.cn/Article/CJFDTOTAL-SYYT201602007.htmZHANG Wei, LI Liang, JIA Huichong. Reservoir-forming dynamics and gas-water distribution characteristics of lithologic traps in the 1st Member of Xiashihezi Formation in the Shilijiahan zone, Hangjinqi area, Ordos Basin[J]. Oil & Gas Geology, 2016, 37(2): 189-196. https://www.cnki.com.cn/Article/CJFDTOTAL-SYYT201602007.htm [25] 陶成, 杨华敏, 刘文汇. 同位素质谱法测定天然气中He含量及其同位素组成[J]. 质谱学报, 2014, 35(2): 138-143. https://www.cnki.com.cn/Article/CJFDTOTAL-ZPXB201402007.htmTAO Cheng, YANG Huamin, LIU Wenhui. Analysis of helium abundance and isotope composition in natural gas by isotopic mass spectrometry[J]. Journal of Chinese Mass Spectrometry Society, 2014, 35(2): 138-143. https://www.cnki.com.cn/Article/CJFDTOTAL-ZPXB201402007.htm [26] 王杰, 陈践发, 王铁冠, 等. 双城-太平川地区稀有气体同位素特征[J]. 天然气工业, 2006, 26(10): 24-26. https://www.cnki.com.cn/Article/CJFDTOTAL-TRQG200610008.htmWANG Jie, CHEN Jianfa, WANG Tieguan, et al. Isotopic characteristics of rare gas in Shuangcheng-Taipingchuan area in the Songliao Basin[J]. Natural Gas Industry, 2006, 26(10): 24-26. https://www.cnki.com.cn/Article/CJFDTOTAL-TRQG200610008.htm [27] 王杰, 刘文汇, 陶成, 等. 海相油气成藏定年技术及其对元坝气田长兴组天然气成藏年代的反演[J]. 地球科学, 2018, 43(6): 1817-1829. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX201806001.htmWANG Jie, LIU Wenhui, TAO Cheng, et al. Key dating methods of reservoir accumulation in marine strata and their applications to natural gas of the Changxing Formation in Yuanba Gas Field[J]. Earth Science, 2018, 43(6): 1817-1829. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX201806001.htm [28] 杨振宁, 李永红, 刘文进, 等. 柴达木盆地北缘全吉山地区氦气形成地质条件及资源远景分析[J]. 中国煤炭地质, 2018, 30(6): 64-70. https://www.cnki.com.cn/Article/CJFDTOTAL-ZGMT201806013.htmYANG Zhenning, LI Yonghong, LIU Wenjin, et al. Geological conditions of helium formation and resource prospect analysis in Quanjishan area, northern Qaidam Basin[J]. Coal Geology of China, 2018, 30(6): 64-70. https://www.cnki.com.cn/Article/CJFDTOTAL-ZGMT201806013.htm [29] 韩伟, 刘文进, 李玉宏, 等. 柴达木盆地北缘稀有气体同位素特征及氦气富集主控因素[J]. 天然气地球科学, 2020, 31(3): 385-392. https://www.cnki.com.cn/Article/CJFDTOTAL-TDKX202003009.htmHAN Wei, LIU Wenjin, LI Yuhong, et al. Characteristics of rare gas isotopes and main controlling factors of radon enrichment in the northern margin of Qaidam Basin[J]. Natural Gas Geoscience, 2020, 31(3): 385-392. https://www.cnki.com.cn/Article/CJFDTOTAL-TDKX202003009.htm [30] 张健, 杨威, 易海永, 等. 四川盆地前震旦系勘探高含氦天然气藏的可行性[J]. 天然气工业, 2015, 35(1): 45-52. https://www.cnki.com.cn/Article/CJFDTOTAL-TRQG201501006.htmZHANG Jian, YANG Wei, YI Haiyong, et al. Feasibility of high-helium natural gas exploration in the Presinian strata of the Sichuan Basin[J]. Natural Gas Industry, 2015, 35(1): 45-52. https://www.cnki.com.cn/Article/CJFDTOTAL-TRQG201501006.htm [31] 徐立涛, 石万忠, 吴睿, 等. 泊尔江海子断层分段演化特征及其对太原—山西组的控制作用[J]. 石油地球物理勘探, 2020, 55(4): 884-891. https://www.cnki.com.cn/Article/CJFDTOTAL-SYDQ202004020.htmXU Litao, SHI Wanzhong, WU Rui, et al. Segmented evolution of Borjianghaizi faults and their control on Taiyuan-Shanxi formations[J]. Oil Geophysical Prospecting, 2020, 55(4): 884-891. https://www.cnki.com.cn/Article/CJFDTOTAL-SYDQ202004020.htm [32] 秦雪霏. 杭锦旗地区东胜气田构造及断裂特征研究[J]. 河南科技, 2014(7): 187-188. https://www.cnki.com.cn/Article/CJFDTOTAL-HNKJ201413140.htmQIN Xuefei. Study on structure and fracture characteristics of Dongsheng gas field in Hangjinqi area[J]. Journal of Henan Science and Technology, 2014(7): 187-188. https://www.cnki.com.cn/Article/CJFDTOTAL-HNKJ201413140.htm [33] PACHECO N, ALI S F. Helium resources of the United States-2007[R]. Denver, Colorado: U.S. Department of the Interior Bureau of Land Management, 2008. [34] DANABALAN D, GLUYAS J G, MACPHERSON, et al. New high-grade helium discoveries in Tanzania[C]//Goldschmidt Conference. Yokohama, Japan: [s. n. ], 2016. [35] 张福礼, 孙启邦, 王行运, 等. 渭河盆地水溶氦气资源评价[J]. 地质力学学报, 2012, 18(2): 195-202. https://www.cnki.com.cn/Article/CJFDTOTAL-DZLX201202009.htmZHANG Fuli, SUN Qibang, WANG Xingyun, et al. Evaluation of water soluble helium resources in Weihe Basin[J]. Journal of Geomechanics, 2012, 18(2): 195-202. https://www.cnki.com.cn/Article/CJFDTOTAL-DZLX201202009.htm [36] BROWN A A. Formation of high helium gases: a guide for explorationists[C]//AAPG Convention. Louisianal, New Orleans, USA: [s. n. ], 2010. [37] DAI Jinxing, NI Yunyan, QIN Shengfei, et al. Geochemical characteristics of He and CO2 from the Ordos (cratonic) and Bohaibay (rift) basins in China[J]. Chemical Geology, 2017, 469: 192-213. [38] 陶小晚, 李建忠, 赵力彬, 等. 我国氦气资源现状及首个特大型富氦储量的发现: 和田河气田[J]. 地球科学, 2019, 44(3): 1024-1041. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX201903029.htmTAO Xiaowan, LI Jianzhong, ZHAO Libin, et al. Helium resources and discovery of first supergiant helium reserve in China: Hetianhe gas field[J]. Earth Science, 2019, 44(3): 1024-1041. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX201903029.htm [39] 朱琳慧. 2019年氦气行业市场发展现状分析[OL]. 2020-02-24. https://xw.qianzhan.com/analyst/detail/220/200223-572380bc.html .ZHU Linhui. Analysis of the development status of the helium industry market in 2019[OL]. 2020-02-24.https://xw.qianzhan.com/analyst/detail/220/200223-572380bc.html . -
