鄂尔多斯盆地保德区块二叠系太原组—山西组主采煤层脆性评价——基于卷积神经网络方法

张庆丰; 李子玲; 张继坤; 郝帅; 孙晓光; 尚延洁; 左运

doi:10.11781/sysydz2025010204

鄂尔多斯盆地保德区块二叠系太原组—山西组主采煤层脆性评价——基于卷积神经网络方法

doi: 10.11781/sysydz2025010204

中石油煤层气有限责任公司，北京 100028

详细信息

作者简介:
张庆丰(1985—)，硕士，高级工程师，主要从事煤层气地质研究及勘探开发工作。E-mail: zqf2012@petrochina.com.cn

通讯作者:
李子玲(1990—)，工程师，主要从事煤层气地质研究及勘探开发工作。E-mail: lzl_cbm@petrochina.com.cn

中图分类号: TE132.2
计量
- 文章访问数: 86
- HTML全文浏览量: 36
- PDF下载量: 16
- 被引次数: 0
出版历程
- 收稿日期: 2024-04-02
- 修回日期: 2024-11-11
- 刊出日期: 2025-01-28

Brittleness evaluation of main coal seams in Permian Taiyuan-Shanxi formations, Baode block, Ordos Basin: based on a convolutional neural network method

PetroChina Coalbed Methane Co., Ltd., Beijing 100028, China

摘要

摘要: 鄂尔多斯盆地东北缘保德区块二叠系太原组—山西组煤层具有丰富的煤层气资源，但井间产能差异大，其重要原因在于储层脆性区域差异导致的强非均质性特征。岩石力学参数法是常用的储层脆性评价方法。研究岩石力学参数和脆性可为压裂改造提供重要参数基础，但当前方法多借助经验公式，评价精度有限。基于卷积神经网络方法，构建实验获取的弹性模量、泊松比与多测井曲线转换模型，建立了岩石力学剖面，进而实现脆性定量评价。结果显示：基于卷积神经网络预测含煤层系岩石力学参数适用性较好。保德区块主采4+5^#和8+9^#煤层脆性指数均整体较低，4+5^#煤层较8+9^#煤层脆性指数值略高，两套主采煤层平面分布具有一定的相似性，均在研究区中部和东南部脆性值低。矿物成分差异影响岩石脆性，石英含量越高，弹性模量和脆性指数越大，具有线性关系。
- 卷积神经网络 /
- 煤层脆性 /
- 太原组—山西组 /
- 二叠系 /
- 保德区块 /
- 鄂尔多斯盆地
Abstract: The coal seams of the Permian Taiyuan-Shanxi formations in the Baode block of the northeastern margin of the Ordos Basin have abundant coalbed methane resources. However, the productivity varies greatly among wells, mainly attributed to the strong heterogeneity caused by regional differences in reservoir brittleness. Rock mechanical parameter method is commonly used to evaluate reservoir brittleness. Studying rock mechanical parameters and brittleness can provide an important basis for fracturing modification. However, current methods mostly rely on empirical formulas, leading to limited evaluation accuracy. In this study, a convolutional neural network (CNN) was utilized to construct a conversion model between experimentally obtained elastic modulus, Poisson's ratio, and multi-logging curves. Based on this method, rock mechanical profiles were further established, enabling quantitative evaluation of brittleness. The results indicated that CNN-based predictions of rock mechanical parameters had good applicability for coal-bearing layers. The brittleness indices the main coal seams, 4+5^# and 8+9^#, in the Baode block were generally low. The brittleness index of the 4+5^# seam was slightly higher than that of the 8+9^# seam. Both seams exhibited similar spatial distributions, with low brittleness values in the central and southeastern parts of the study area. Differences in mineral composition affected rock brittleness. Higher quartz content was linearly correlated with greater elastic modulus and brittleness index.
- convolutional neural network /
- coal seam brittleness /
- Taiyuan-Shanxi formations /
- Permian /
- Baode block /
- Ordos Basin
注释:

利益冲突声明/Conflict of Interests

所有作者声明不存在利益冲突。

All authors declare no relevant conflict of interests.

作者贡献/Authors’Contributions

张庆丰、李子玲撰写论文初稿；郝帅、尚延洁、左运完成绘图；张继坤、孙晓光修改论文。所有作者均阅读并同意最终稿件的提交。

ZHANG Qingfeng and LI Ziling wrote the initial draft of the paper. HAO Shuai, SHANG Yanjie, and ZUO Yun completed the drawings. ZHANG Jikun and SUN Xiaoguang revised the paper. All authors have read the final version of the paper and consented to its submission.

HTML全文

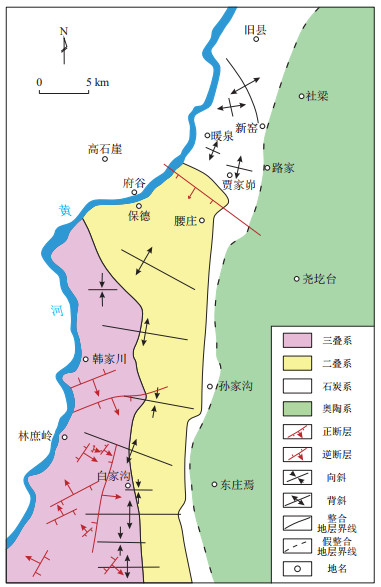

图 1 鄂尔多斯盆地保德区块大地构造

据参考文献[17]修改。

Figure 1. Geotectonic map of Baode block, Ordos Basin

下载: 全尺寸图片幻灯片

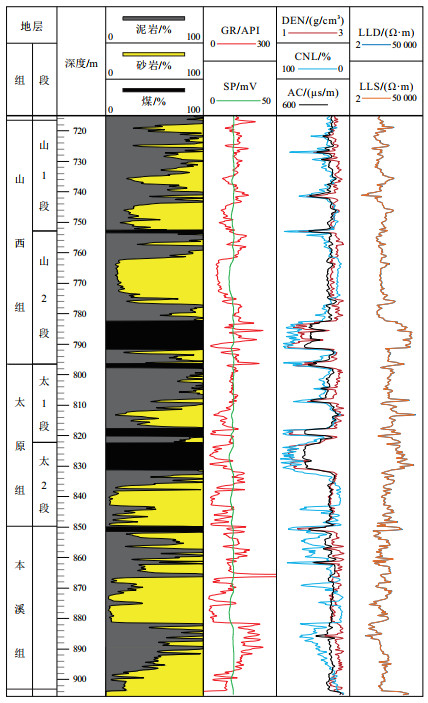

图 2 鄂尔多斯盆地保德区块典型井地层柱状图

Figure 2. Stratigraphic histogram of typical wells in Baode block, Ordos Basin

下载: 全尺寸图片幻灯片

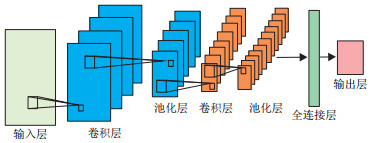

图 3 卷积神经网络结构

Figure 3. Structure of convolutional neural network

下载: 全尺寸图片幻灯片

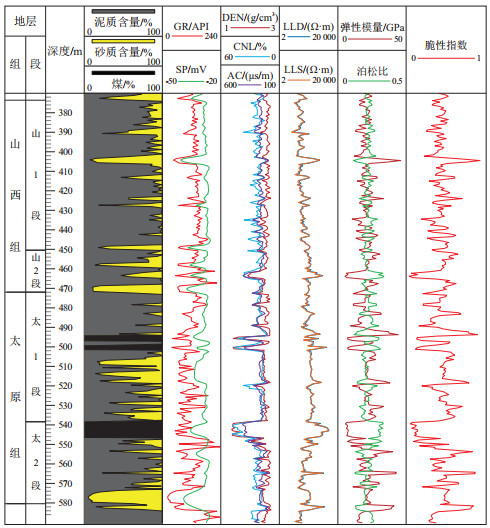

图 4 鄂尔多斯盆地保德区块B38井二叠系太原组—山西组煤层及其顶底板脆性评价剖面

Figure 4. Brittleness evaluation profiles of coal seams and their roof and floor in Permian Taiyuan-Shanxi formations of well B38 in Baode block, Ordos Basin

下载: 全尺寸图片幻灯片

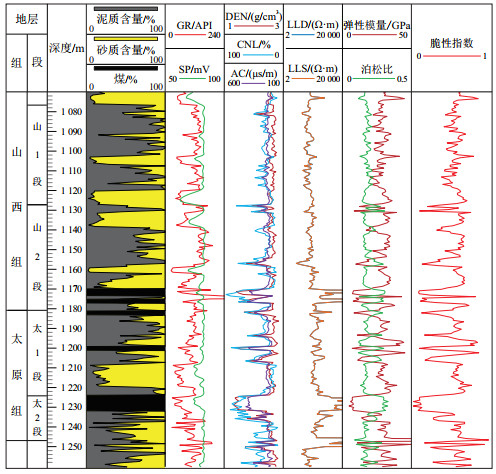

图 5 鄂尔多斯盆地保德区块B19井二叠系太原组—山西组煤层及其顶底板脆性评价剖面

Figure 5. Brittleness evaluation profiles of coal seams and their roof and floor in Permian Taiyuan-Shanxi formations of well B19 in Baode block, Ordos Basin

下载: 全尺寸图片幻灯片

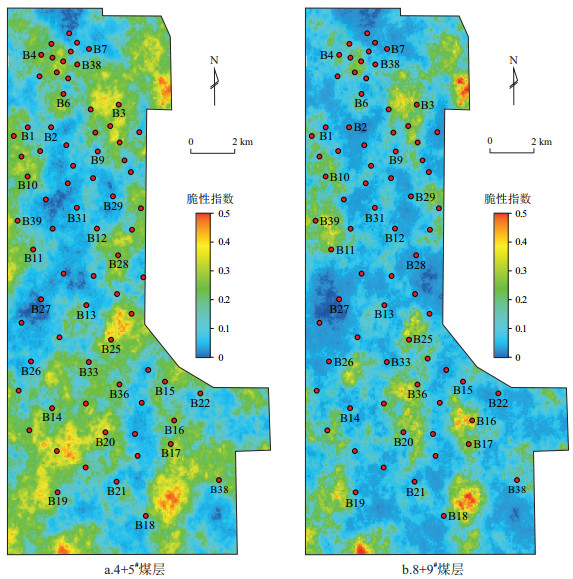

图 6 鄂尔多斯盆地保德区块二叠系太原组—山西组主采煤层脆性评价结果

Figure 6. Brittleness evaluation results of main coal seams in Permian Taiyuan-Shanxi formations of Baode block, Ordos Basin

下载: 全尺寸图片幻灯片

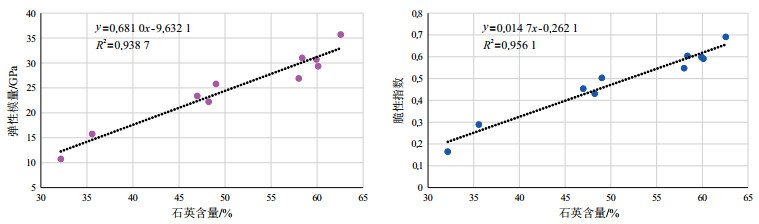

图 7 鄂尔多斯盆地保德区块砂泥岩层段岩石弹性模量、脆性指数与石英含量的关系

Figure 7. Relationship between elastic modulus, brittleness index, and quartz content of rocks in sand and mudstone layers of Baode block, Ordos Basin

下载: 全尺寸图片幻灯片

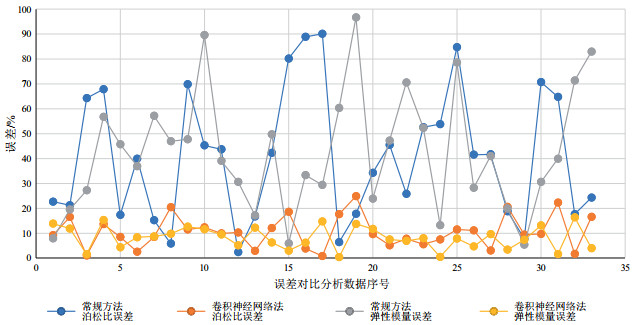

图 8 常规方法与卷积神经网络方法预测岩石力学参数精度统计

Figure 8. Accuracy statistics of rock mechanical parameter predictions using conventional method and convolutional neural network method

下载: 全尺寸图片幻灯片

表 1 基于岩石力学参数评价脆性常用公式

Table 1. Common formulas for evaluating brittleness based on rock mechanical parameters

脆性评价公式	参数含义	文献来源
B=(σ_c-σ_t)/(σ_c+σ_t)	σ_c为单轴抗压强度，σ_t为抗张强度	HUCKA等^[20]
B=45°+φ/2	φ为内摩擦角	HUCKA等^[20]
B=σ_cσ_t/2	σ_c为单轴抗压强度，σ_t为抗张强度	ALTINDAG^[21]
B=(E_b+μ_b)/2 E_b=(E_i-E_min)×100%/(E_max-E_min) μ_b=(μ_i-μ_max)×100%/(μ_min-μ_max)	E_b和μ_b为中间参数，E_max和E_min分别为最大和最小弹性模量，μ_max和μ_min分别为最大和最小泊松比	RICKMAN等^[22]
B=0.918σ_c-2.174σ_t-0.913ρ-3.807	σ_c为单轴抗压强度，σ_t为抗张强度，ρ为岩石密度	YAGIZ^[23]
B=Eρ/μ	E为岩石弹性模量，μ为泊松比，ρ为岩石密度	ZHANG等^[24]
B=(2G-2)/λ=1/λ-4	G为剪切模量，λ为拉梅常数	HUANG等^[25]

下载: 导出CSV

表 2 卷积神经网络分析弹性模量、泊松比数据及误差统计

Table 2. Convolutional neural network analysis of elastic modulus, Poisson's ratio, and errors

序号	GR/ API	AC/ (μm/s)	DEN/ (g/cm³)	CNL/ %	实测E/ GPa	预测E/ GPa	误差/ %	实测μ	预测μ	误差/ %
1	130.78	227.52	2.60	22.19	34.00	29.39	13.55	0.25	0.23	8.90
2	129.37	262.97	2.45	23.22	30.00	26.52	11.61	0.27	0.23	16.24
3	176.70	282.47	2.44	20.90	16.35	16.55	1.22	0.20	0.20	0.76
4	73.68	270.20	2.51	14.85	15.39	13.07	15.05	0.19	0.22	13.36
5	72.30	222.49	2.65	15.26	27.42	26.31	4.06	0.36	0.33	8.19
6	89.07	322.11	2.10	76.75	17.32	18.72	8.08	0.27	0.28	2.23
7	129.60	214.02	2.73	23.99	29.11	26.65	8.45	0.25	0.23	8.19
8	83.15	410.30	1.52	60.21	4.18	4.58	9.49	0.43	0.34	20.19
9	108.68	318.67	2.12	40.69	22.10	19.37	12.36	0.22	0.24	11.22
10	153.26	231.97	2.60	46.30	18.72	20.84	11.31	0.21	0.18	12.09
11	126.72	256.61	2.33	21.53	16.24	14.74	9.21	0.24	0.22	9.63
12	142.40	218.46	2.73	24.89	33.88	32.23	4.86	0.28	0.25	10.02
13	119.79	212.46	2.70	18.92	38.90	34.24	11.97	0.25	0.24	2.62
14	146.22	226.91	2.75	21.78	27.62	29.27	5.98	0.20	0.18	11.78
15	87.57	282.79	2.34	21.94	20.00	20.54	2.71	0.19	0.22	18.31
16	127.79	220.18	2.62	20.65	30.00	31.78	5.92	0.16	0.17	3.54
17	103.24	262.79	2.48	30.08	35.00	29.93	14.48	0.17	0.17	0.52
18	85.36	244.21	2.57	16.63	19.40	19.38	0.12	0.33	0.27	17.43
19	132.81	235.85	2.60	45.09	17.40	19.74	13.46	0.37	0.28	24.68
20	143.32	266.80	2.39	28.33	18.00	20.06	11.43	0.25	0.23	9.35
21	101.96	340.12	1.99	31.41	16.00	17.16	7.23	0.27	0.28	4.86
22	83.07	242.83	2.54	16.14	18.00	19.19	6.61	0.25	0.23	7.51
23	105.95	309.07	2.07	29.00	24.00	22.14	7.73	0.25	0.26	5.26
24	143.17	282.50	2.26	24.15	20.00	19.96	0.19	0.23	0.25	7.21
25	126.39	354.55	1.89	34.43	31.00	28.65	7.59	0.22	0.24	11.19
26	124.28	240.55	2.36	26.76	37.00	35.38	4.38	0.24	0.21	10.89
27	92.30	308.08	2.16	27.51	22.00	24.06	9.38	0.26	0.25	2.72
28	44.45	379.29	1.45	55.84	2.56	2.64	3.10	0.39	0.31	20.37
29	100.30	237.43	2.48	17.00	29.00	26.95	7.07	0.30	0.27	9.17
30	91.50	262.08	2.47	17.39	19.00	21.45	12.87	0.19	0.21	9.40
31	132.58	296.92	2.43	25.22	31.00	30.59	1.32	0.20	0.24	22.08
32	144.45	353.38	1.64	65.49	14.29	16.60	16.13	0.37	0.37	1.35
33	46.81	393.85	1.25	62.70	4.68	4.51	3.68	0.39	0.33	16.34
注：E为弹性模量，μ为泊松比；误差计算方法：预测与实测之差的绝对值与实测值的比值。

下载: 导出CSV
