WANG Liangjun, YUE Xinxin, LI Liansheng, WANG Yanpeng. Pore development characteristics and main controlling factors of tight oil reservoir in the seventh member of Triassic Yanchang Formation, Xunyi area, Ordos Basin[J]. PETROLEUM GEOLOGY & EXPERIMENT, 2024, 46(6): 1135-1144. doi: 10.11781/sysydz2024061135
Citation: WANG Liangjun, YUE Xinxin, LI Liansheng, WANG Yanpeng. Pore development characteristics and main controlling factors of tight oil reservoir in the seventh member of Triassic Yanchang Formation, Xunyi area, Ordos Basin[J]. PETROLEUM GEOLOGY & EXPERIMENT, 2024, 46(6): 1135-1144. doi: 10.11781/sysydz2024061135

Pore development characteristics and main controlling factors of tight oil reservoir in the seventh member of Triassic Yanchang Formation, Xunyi area, Ordos Basin

doi: 10.11781/sysydz2024061135
  • Received Date: 2024-07-18
  • Rev Recd Date: 2024-10-11
  • Publish Date: 2024-11-28

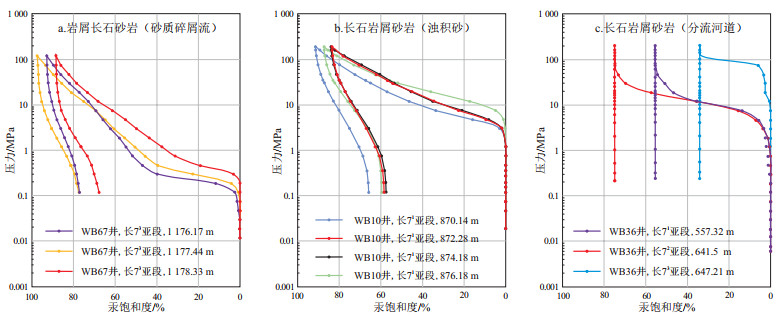

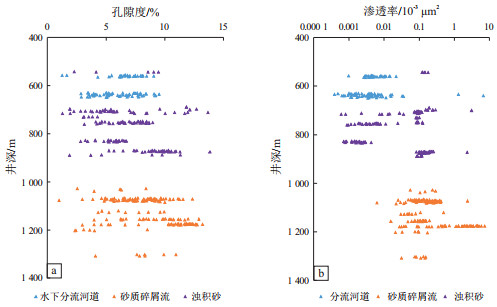

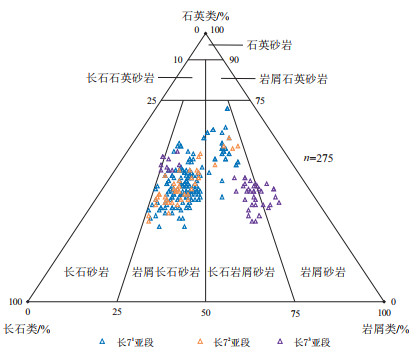

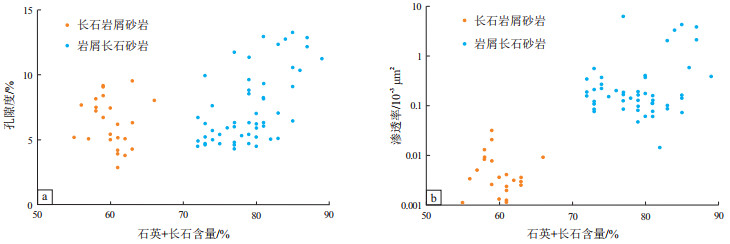

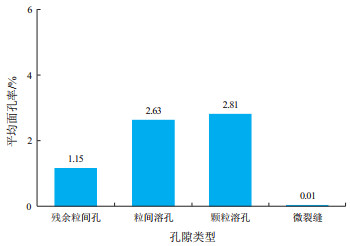

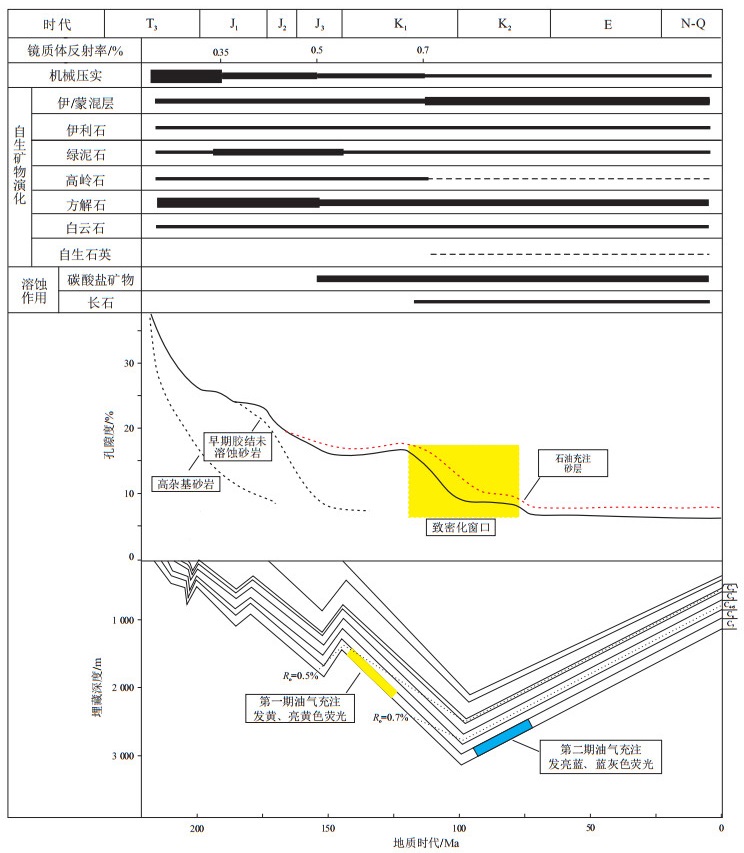

  • The seventh member of the Triassic Yanchang Formation (Chang 7 Member) in the Xunyi area of the Ordos Basin is a typical tight oil reservoir characterized by low porosity, low permeability, and strong heterogeneity. Elucidating the pore development characteristics and primary controlling factors of the reservoir is beneficial for tight oil exploration and development. Through thin-section analysis, physical property tests, scanning electron microscopy(SEM), X-ray diffraction (XRD) analysis, and mercury intrusion porosimetry, this study investigated the petrological characteristics, reservoir space, and diagenetic evolution of the tight oil reservoir, revealing its main controlling factors. The reservoir depth in Chang 7 Member of the Xunyi area of the Ordos Basin ranged from 500 to 1 250 m. The lithology was primarily composed of lithic arkose sandstone, followed by feldspar lithic sandstone, with the interstitial materials mainly consisting of calcite, dolomite, and mud. The sand bodies in the reservoir were thick, with high compositional maturity. Rigid minerals, such as quartz and feldspar, which are highly resistant to weathering, made up a large portion of the framework grains. The quartz content ranged from 30% to 77%, with an average of 44.97%, while the feldspar content ranged from 4% to 52%, with an average of 31.61%. The pore types were mostly intergranular dissolved pores and intragranular dissolved pores, followed by residual intergranular pores and a few microfractures. The average porosity was 7.3%, and the average permeability was 0.4×10-3 μm2. The reservoir is in the middle diagenetic stage A and has completed tight compaction during the Cretaceous. The primary factors contributing to reservoir densification included its poor resistance to compaction, carbonate cementation, illite/smectite mixed layers, and authigenic quartz. The quartz and feldspar content and early oil and gas charging preserved a significant quantity of primary pores. The ongoing dissolution and fragmentation during the middle diagenetic stage were the primary causes for the development of secondary pores.



  • All authors disclose no relevant conflict of interests.
    The study was designed by WANG Liangjun and LI Liansheng. The experimental operation was completed by YUE Xinxin and WANG Yanpeng. The manuscript was drafted and revised by WANG Liangjun, YUE Xinxin, LI Liansheng, and WANG Yanpeng. All authors have read the last version of the paper and consented to its submission.
  • loading
  • [1]
    李荣西, 段立志, 张少妮, 等. 鄂尔多斯盆地低渗透油气藏形成研究现状与展望[J]. 地球科学与环境学报, 2011, 33(4): 364-372.

    LI Rongxi, DUAN Lizhi, ZHANG Shaoni, et al. Review on oil/gas accumulation with low permeability in Ordos Basin[J]. Journal of Earth Sciences and Environment, 2011, 33(4): 364-372.
    [2]
    郭秋麟, 武娜, 陈宁生, 等. 鄂尔多斯盆地延长组第7油层组致密油资源评价[J]. 石油学报, 2017, 38(6): 658-665.

    GUO Qiulin. WU Na. CHEN Ningsheng, et al. An assessment of tight oil resource in 7th oil reservoirs of Yanchang Formation, Ordos Basin[J]. Acta Petrolei Sinica, 2017, 38(6): 658-665.
    [3]
    何浩男, 赵卫卫, 王汇智, 等. 鄂尔多斯盆地东南部延长组长7致密油成藏机制及主控因素[J]. 非常规油气, 2019, 6(3): 33-40.

    HE Haonan, ZHAO Weiwei, WANG Huizhi, et al. Mechanism of hydrocarbon accumulation formation and main controlling factors in Chang-7 tight oil of Yanchang Formation, southeastern Ordos Basin[J]. Unconventional Oil & Gas, 2019, 6(3): 33-40.
    [4]
    张启贤, 王红亮. 鄂尔多斯东南部延长组致密油储层微观特征及主控因素[J]. 科学技术与工程, 2016, 16(34): 52-63.

    ZHANG Qixian, WANG Hongliang. Microscopic characteristics and main controlling factors of tight oil reservoir of Yanchang Formation in southeastern Ordos Basin, China[J]. Science Technology and Engineering, 2016, 16(34): 52-63.
    [5]
    齐亚林, 赵彦德, 王克, 等. 鄂尔多斯盆地姬塬与黄陵地区长8段储层主控因素研究[J]. 石油实验地质, 2015, 37(3): 334-340. doi: 10.11781/sysydz201503334

    QI Yalin, ZHAO Yande, WANG Ke, et al. Reservoir main controlling factors of Chang8 sandstones in Jiyuan and Huangling areas, Ordos Basin[J]. Petroleum Geology & Experiment, 2015, 37(3): 334-340. doi: 10.11781/sysydz201503334
    [6]
    姚泾利, 邓秀芹, 赵彦德, 等. 鄂尔多斯盆地延长组致密油特征[J]. 石油勘探与开发, 2013, 40(2): 150-158.

    YAO Jingli, DENG Xiuqin, ZHAO Yande, et al. Characteristics of tight oil in Triassic Yanchang Formation, Ordos Basin[J]. Petroleum Exploration and Development, 2013, 40(2): 150-158.
    [7]
    祝海华, 钟大康, 姚泾利, 等. 鄂尔多斯西南地区长7段致密油储层微观特征及成因机理[J]. 中国矿业大学学报, 2014, 43(5): 853-863.

    ZHU Haihua, ZHONG Dakang, YAO Jingli, et al. Microscopic characteristics and formation mechanism of Upper Triassic Chang 7 tight oil reservoir in the southwest Ordos Basin[J]. Journal of China University of Mining & Technology, 2014, 43(5): 853-863.
    [8]
    白金莉, 李文厚, 刘江斌, 等. 鄂尔多斯盆地旬邑地区长8段沉积储层特征[J]. 地质科学, 2022, 57(1): 88-99.

    BAI Jinli, LI Wenhou, LIU Jiangbin, et al. The characteristics of sedimentary facies and reservoir of the Chang 8 member in Xunyi area, Ordos Basin[J]. Chinese Journal of Geology, 2022, 57(1): 88-99.
    [9]
    李威, 文志刚, 窦立荣, 等. 鄂尔多斯盆地西南地区油气富集与储层演化史[J]. 天然气地球科学, 2017, 28(6): 920-929.

    LI Wei, WEN Zhigang, DOU Lirong, et al. Coupling relationship between tight oil and gas accumulation and compacting history in southwestern Ordos Basin, China[J]. Natural Gas Geoscience, 2017, 28(6): 920-929.
    [10]
    周新平, 何青, 刘江艳, 等. 鄂尔多斯盆地三叠系延长组7段深水碎屑流沉积特征及成因[J]. 石油与天然气地质, 2021, 42(5): 1063-1077.

    ZHOU Xinping, HE Qing, LIU Jiangyan, et al. Features and origin of deep-water debris flow deposits in the Triassic Chang 7 Member, Ordos Basin[J]. Oil & Gas Geology, 2021, 42(5): 1063-1077.
    [11]
    张家强, 李士祥, 李宏伟, 等. 鄂尔多斯盆地延长组7油层组湖盆远端重力流沉积与深水油气勘探: 以城页水平井区长73小层为例[J]. 石油学报, 2021, 42(5): 570-587.

    ZHANG Jiaqiang, LI Shixiang, LI Hongwei, et al. Gravity flow deposits in the distal lacustrine basin of the 7th reservoir group of Yanchang Formation and deepwater oil and gas exploration in Ordos Basin: a case study of Chang 73 sublayer of Chengye horizontal well region[J]. Acta Petrolei Sinica, 2021, 42(5): 570-587.
    [12]
    杨希濮, 孙卫. 鄂尔多斯盆地延安地区致密砂岩气藏"甜点"储层主控因素分析[J]. 地质科技情报, 2016, 35(6): 138-143.

    YANG Xipu, SUN Wei. Major controlling factor of tight sandstone gas sweat reservoir in Yan'an area of Ordos Basin[J]. Geological Science and Technology Information, 2016, 35(6): 138-143.
    [13]
    牟蜚声, 尹相东, 胡琮, 等. 鄂尔多斯盆地陕北地区三叠系长7段致密油分布特征及控制因素[J]. 岩性油气藏, 2024, 36(4): 71-84.

    MOU Feisheng, YIN Xiangdong, HU Cong, et al. Distribution characteristics and controlling factors of tight oil of Triassic Chang 7 member in northern Shaanxi area, Ordos Basin[J]. Lithologic Reservoirs, 2024, 36(4): 71-84.
    [14]
    BEARD D C, WEYL P K. Influence of texture on porosity and permeability of unconsolidated sand[J]. AAPG Bulletin, 1973, 57(2): 349-369.
    [15]
    龚建涛, 白艳军, 陈西泮, 等. 伊陕斜坡胡尖山区块长7段储层特征及主控因素分析[J]. 能源与环保, 2024, 46(6): 126-133.

    GONG Jiantao, BAI Yanjun, CHEN Xipan, et al. Analysis of reservoir characteristics and main controlling factors of Chang 7 Member in Hujianshan block of Yishan Slope[J]. China Energy and Environmental Protection, 2024, 46(6): 126-133.
    [16]
    钟大康, 祝海华, 孙海涛, 等. 鄂尔多斯盆地陇东地区延长组砂岩成岩作用及孔隙演化[J]. 地学前缘, 2013, 20(2): 61-68.

    ZHONG Dakang, ZHU Haihua, SUN Haitao, et al. Diagenesis and porosity evolution of sandstones in Longdong area, Ordos Basin[J]. Earth Science Frontiers, 2013, 20(2): 61-68.
    [17]
    谢芸雅, 刘显凤, 王健, 等. 鄂尔多斯盆地陕北地区延长组长7段致密油储层特征及其主控因素[J]. 海洋地质与第四纪地质, 2022, 42(3): 149-159.

    XIE Yunya, LIU Xianfeng, WANG Jian, et al. Characteristics and main controlling factors of tight oil reservoirs in Chang 7 Member of Yanchang Formation in Ordos Basin, north Shaanxi[J]. Marine Geology & Quaternary Geology, 2022, 42(3): 149-159.
    [18]
    常思远, 陈冬霞, 汪成, 等. 深层储层原生孔隙成岩作用保存机制及模式: 以珠江口盆地惠州凹陷南部恩平组和文昌组为例[J]. 东北石油大学学报, 2022, 46(2): 72-85.

    CHANG Siyuan, CHEN Dongxia, WANG Cheng, et al. Preservation mechanism and model of primary pore diagenesis in deep reservoirs: taking the Enping Formation and Wenchang Formation in the south of Huizhou Sag, Pearl River Mouth Basin as examples[J]. Journal of Northeast Petroleum University, 2022, 46(2): 72-85.
